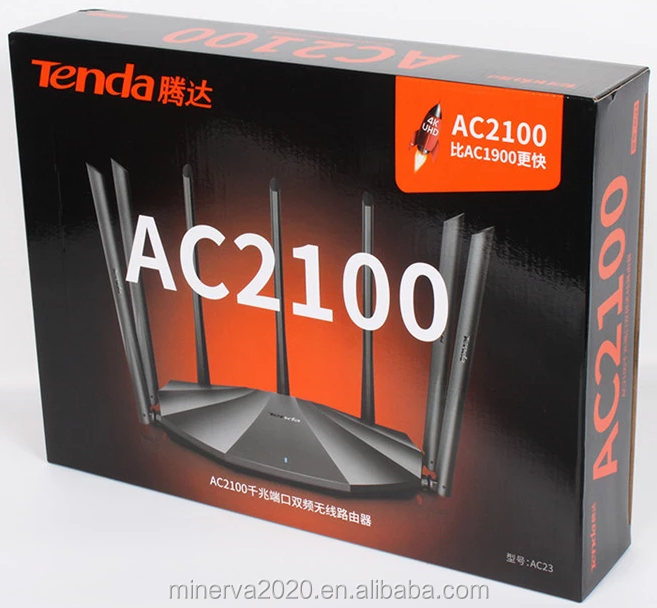

Tenda AC23 Gigabit Dual-Band AC2100 Wireless Router Wifi Repeater with 7*6dBi High Gain Antennas Wider Coverage Easy setup
Home > Products > For Wifi Router > For Tenda Router > Tenda AC23 Gigabit Dual-Band AC2100 Wireless Router Wifi Repeater with 7*6dBi High Gain Antennas Wider Coverage Easy setup

Tenda AC23 Gigabit Dual-Band AC2100 Wireless Router Wifi Repeater with 7*6dBi High Gain Antennas Wider Coverage Easy setup

    Min. Order: 1 Piece/Pieces
    Packaging: Single package specification: 365*285*70MM Standard container gauge (10 pcs) : 585*375*385MM Gross weight (box) : 8KG
    Transportation: Express,Ocean,Land,Air
    Supply Ability: 1000 Piece/Pieces per Week
    Port: shenzhen

Product Description

Product Description
AC23 / Router / AC2100 Dual Band Gigabit WiFi Router
AC23 is a dual band gigabit wireless router specially designed for households with high speed internet access. It supports

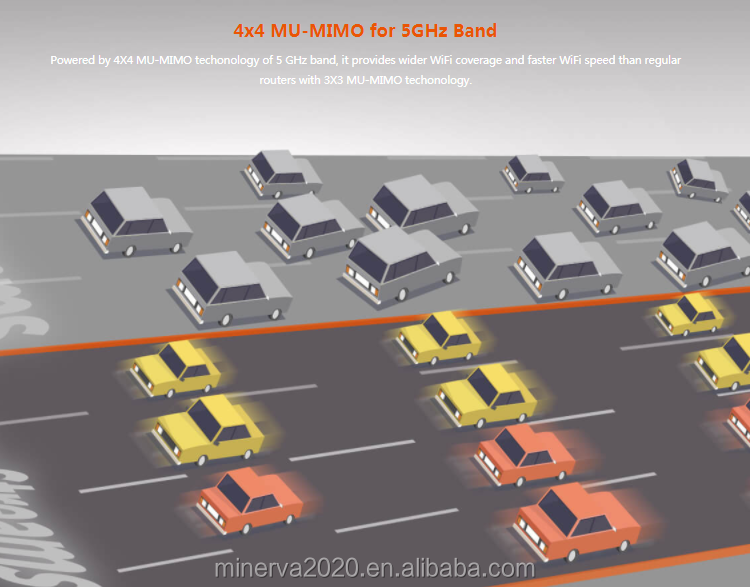

802.11ac wave2 techonology and provides WiFi speed up to 2033Mbps (2.4 GHz: 300Mbps, 5GHz: 1733Mbps) to achieve the best performance for your fiber internet connection. Powered by 4X4 MU-MIMO technology of 5GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO technology. Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access. The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design brings a faster processing speed and provides optimized operation. Featured with 7*6dBi external antennas , AC23 outshines in performance and wall penetration capacity.
Product Name
EIRP Power (Max.)
2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)
IEEE802.3, IEEE802.3u,IEEE802.3ab

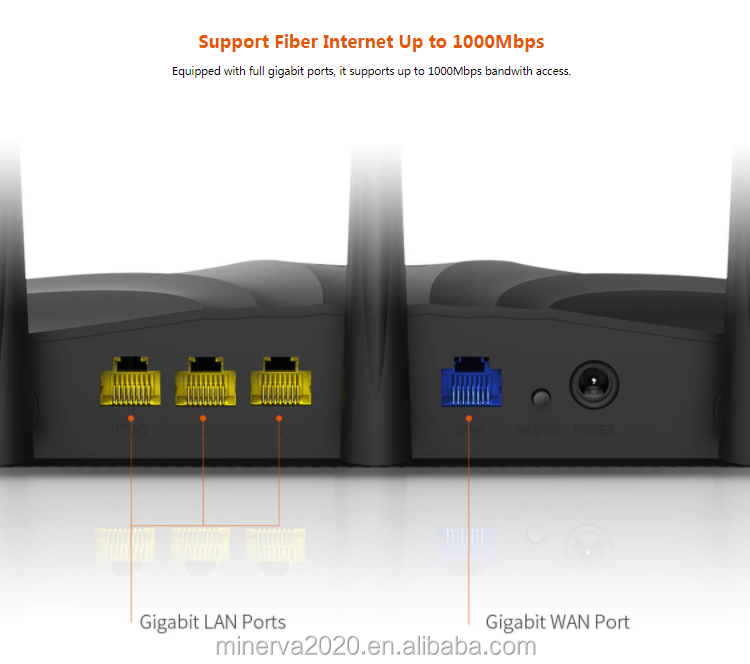

1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

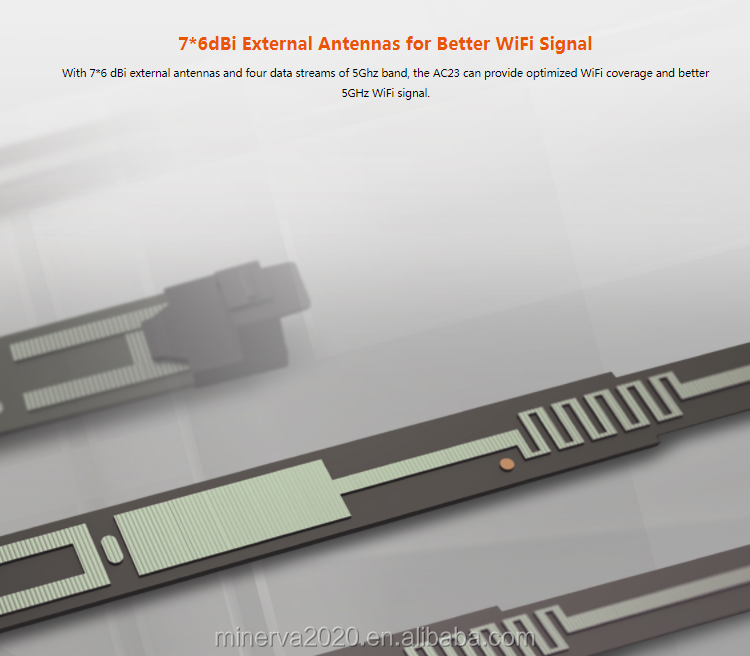

7*6dBi external antennas
1* WPS/Reset button
Input:AC 100-240V~50/60Hz 0.6A
Output:DC 12V1.5A
LED indicator
Sys*1,WAN*1, LAN*1,WiFi/WPS*1
Wireless Standards
IEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data Rate
5GHz: Up to 1733Mbps
2.4GHz: Up to 300Mbps
Simultaneous dual band 2.4 & 5GHz
Transmit Power
Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Wireless Security
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode
Wireless Router Mode
Universal Repeater Mode
DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
Client Filter
Parental Control(support black list and white list)

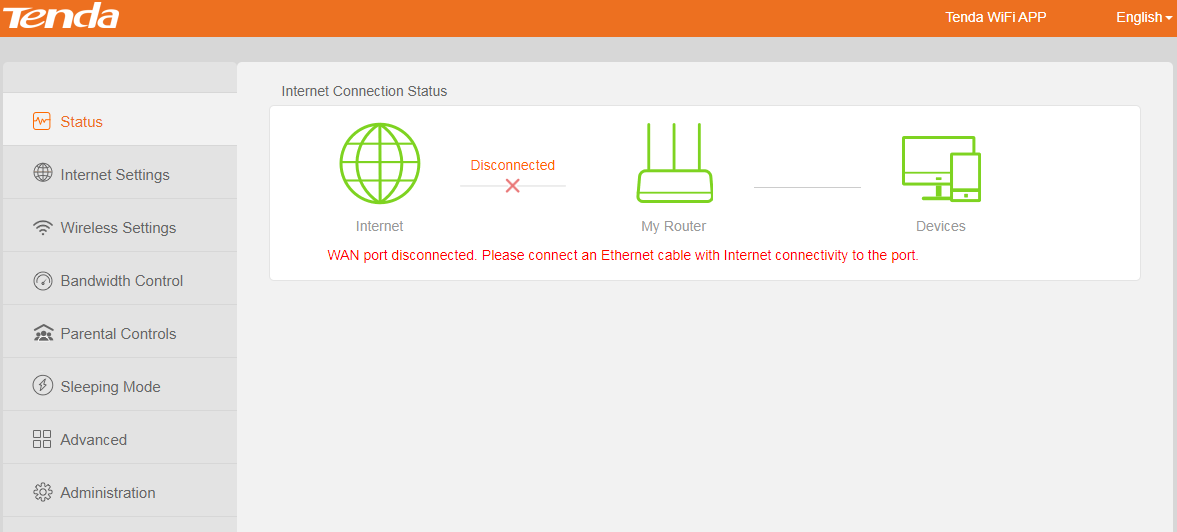

Remote Web Management
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
Support DynDNS,, 88ip
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Special Features
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Bandwidth Control
Guest Network
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings
Default Access:
Package Content
Wireles Router*1

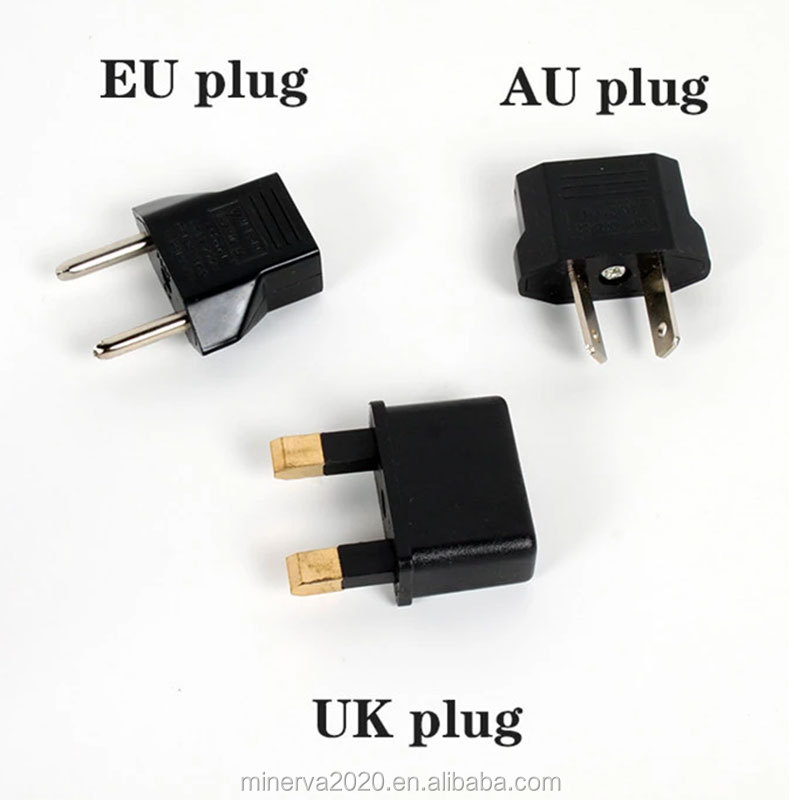

Power Adapter *1
Install Guide*1
Ethernet Cable*1
Details Images
Product Usage
